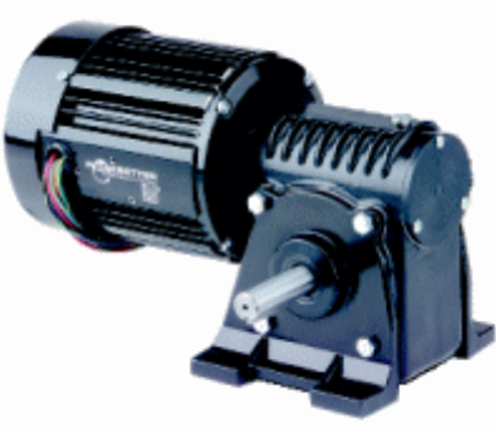

2281 Gearmotor
Unit of Measure

Specifications

Supplier Name

 N/A Bodine Electric Company

Manufacturer Part Number

 N/A 2281

Duty / Condition Type

 N/A Continuous Duty

Enclosure Type

 N/A Totally Enclosed Fan Cooled (TEFC)

Frequency Rating

 N/A 60 Hz

Full Load Current

 N/A 2.70 A

Full Load Torque

 N/A 285 in·lb

Gear Ratio

 N/A 36:1

Harmonization Code

 N/A 8501.51.3020

Input Power

 N/A 3/4 hp

Insulation Class

 N/A F

Ingress Protection Rating

 N/A Ingress Protection (IP20)

Motor Phase

 N/A 3 hp

Motor Supply Voltage

 N/A 460 V

Mounting Type

 N/A Footed

National Electrical Manufacturers Association (NEMA) Frame

 N/A 48R

Output Speed

 N/A 47.0 rpm

Overhung Load

 N/A 150 lb

Shaft Type

 N/A Right Angle

Stage

 N/A 1

Standards Met

 N/A Canadian Standards Association (CSA) CURUS Restriction of Hazardous Substances (RoHS) Underwriter Laboratories (UL)

Weight

 N/A 40.00 lb
