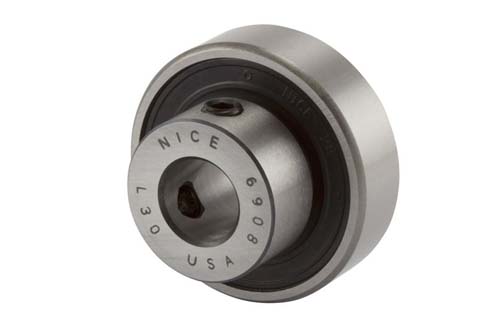

Nice® Ball Insert Bearing - Cylindrical Bore, Medium Duty, Double Set Screw Extended Inner Ring Locking
Unit of Measure

Specifications

Supplier Name

 N/A Nice® Ball Bearings (RBC® Bearings)

Manufacturer Part Number

 N/A N6908BTNTG18

UPC Code

 N/A 637400291037

Series

 N/A 6900

Prop 65

 N/A Yes

Bearing Material

 N/A 52100 Bearing Quality Steel

Bore Diameter

 N/A 1/2 in

Bore Type

 N/A Cylindrical

Cage Material

 N/A Nylon

Closure Type

 N/A Double Sealed

Duty Type

 N/A Medium Duty

Finish/Coating

 N/A Chrome Plated

Inner Ring Width

 N/A 1.0000 in

Internal Clearance

 N/A C0

Locking Device

 N/A Double Set Screw Extended Inner Ring

Operating Temperature [Max]

 N/A 300 ºF

Maximum Speed

 N/A 2500 rpm

Outer Ring Width

 N/A 0.5 in

Outside Diameter

 N/A 1.6250 in

Overall Width

 N/A 1.0000 in

Precision Rating

 N/A Not Rated

Radial Dynamic Load Capacity

 N/A 1010 lbf

Radial Static Load Capacity

 N/A 1610 lbf

Snap Ring Included

 N/A Without Snap Ring

Weight

 N/A 0.35 lb

Features & Benefits

Features & Benefits

 N/A
  • This bearing is not flanged and can be assembled directly in a housing.
  • Pregreased with metered Shell Alvania #2 grease.
  • Suitable for medium loads and moderate speeds.
  • Extended inner ring with 2 set screws for securing a shaft.
  • Although not the self-aligning type, this bearing will accommodate a limited amount of angular misalignment.
