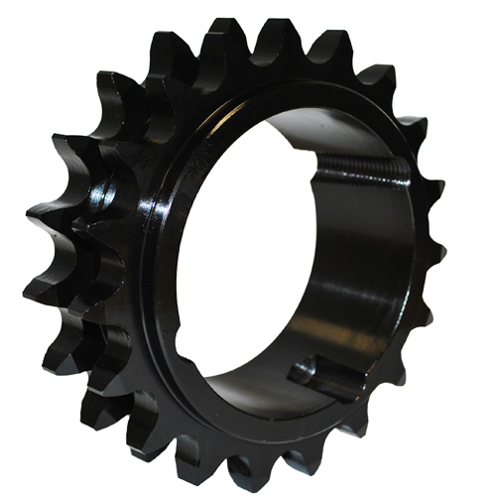

D60BTL30 Sprocket
Unit of Measure

Specifications

Supplier Name

 N/A Tsubaki (UST)

Manufacturer Part Number

 N/A D60BTL30

Bushing Bore Range

 N/A 1/2 to 2-1/2 in

Bushing Size

 N/A 2517

Bushing Type

 N/A Taper Locking

Chain Number

 N/A 60

Chain Pitch Size

 N/A 3/4 in

Hub Diameter

 N/A 6-11/32 in

Length Through Bore

 N/A 1-3/4 in

Material

 N/A Steel

Number of Hubs

 N/A 1

Number of Strands Across

 N/A 2

Number of Teeth

 N/A 30

Outside Diameter

 N/A 7.586 in

Overall Width

 N/A 1-3/4 in

Pitch Diameter

 N/A 7.175 in

Pitch Type

 N/A Single

Tooth Width

 N/A 0.444 in

Weight

 N/A 13.500 lb

Width Across Tooth Sets

 N/A 1.341 in
