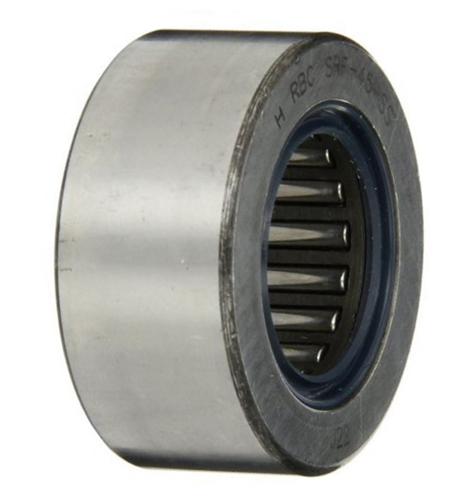

SRF-40-SS Bearing
Unit of Measure

Specifications

Supplier Name

 N/A RBC® Bearings

Manufacturer Part Number

 N/A SRF40SS

Series

 N/A SRF

Axial Dynamic Load Capacity

 N/A 5000 lbf

Axial Static Load Capacity

 N/A 7500 lbf

Bearing Element

 N/A Needle Rollers

Bore Diameter

 N/A 1.0000 in

Closure Type

 N/A Sealed

Lubrication Hole Location

 N/A None

Maximum Speed

 N/A 3800 rpm

Operating Temperature Range

 N/A -20 to 250 ºF

Overall Width

 N/A 0.9950 in

Roller Diameter

 N/A 2.0000 in

Roller Material

 N/A Chrome Steel

Roller Shape

 N/A Flat

Roller Width

 N/A 0.995 in

Standards Met

 N/A American National Standards Institute (ANSI)/American Bearing Manufacturers Association (ABMA) Standard 11

Weight

 N/A 0.56 lb
