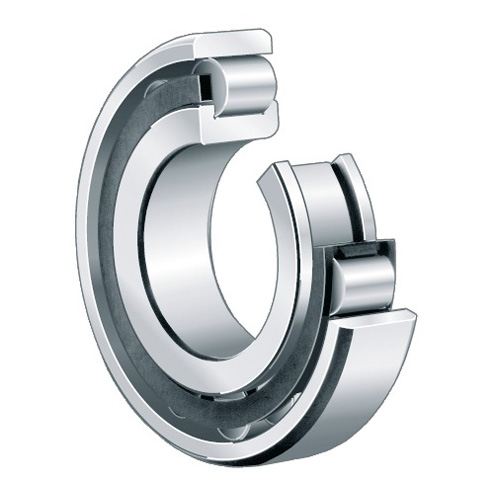

N1026K.M1.SP Super Precision
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A N1026K.M1.SP

Bore Diameter

 N/A 130 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 179000 N

Fillet Radius

 N/A 2 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (2) Inner Ring

Internal Clearance

 N/A C0

Maximum Speed

 N/A 5600 rpm

Outer Ring Width

 N/A 33 mm

Outside Diameter

 N/A 200 mm

Overall Width

 N/A 33 mm

Precision Rating

 N/A Not Rated

Ring Separation

 N/A Separable Outer Ring

Series

 N/A N10

Static Load Rating

 N/A 250000 N
