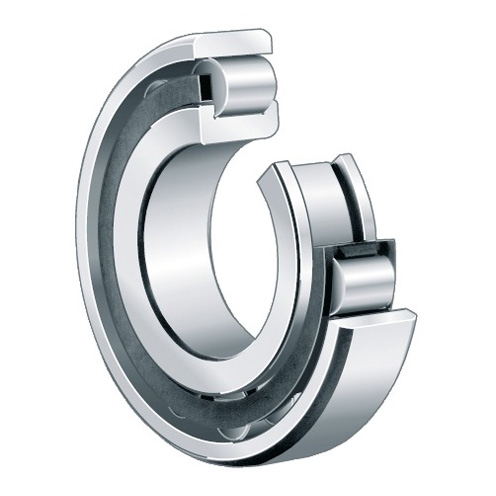

NU228-E-M1 Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A NU228-E-M1

Bore Diameter

 N/A 140 mm

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 460000 N

Fillet Radius

 N/A 2.5 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (2) Outer Ring

Internal Clearance

 N/A C0

Maximum Speed

 N/A 4250 rpm

Number of Rows

 N/A Single-Row

Operating Temperature Range

 N/A -30 to 150 ºC

Outer Ring Width

 N/A 42 mm

Outside Diameter

 N/A 250 mm

Overall Width

 N/A 42 mm

Precision Rating

 N/A Not Rated

Ring Separation

 N/A Separable Outer Ring

Series

 N/A NU2

Static Load Rating

 N/A 510000 N

Weight

 N/A 20.9 lb
