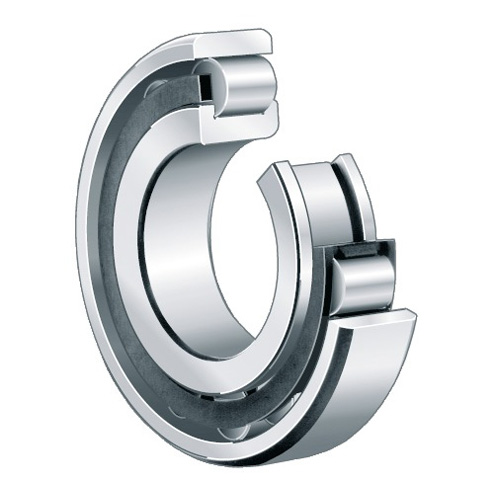

NU226-E-TVP2 Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A NU226-E-TVP2

Bore Diameter

 N/A 130 mm

Bore Type

 N/A Straight

Cage Material

 N/A Polyamide

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 425000 N

Fillet Radius

 N/A 2.5 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (2) Outer Ring

Internal Clearance

 N/A C0

Maximum Speed

 N/A 3500 rpm

Number of Rows

 N/A Single-Row

Operating Temperature Range

 N/A -30 to 120 ºC

Outer Ring Width

 N/A 40 mm

Outside Diameter

 N/A 230 mm

Overall Width

 N/A 40 mm

Precision Rating

 N/A Not Rated

Ring Separation

 N/A Separable Outer Ring

Series

 N/A NU2

Static Load Rating

 N/A 445000 N

Weight

 N/A 14.26 lb
