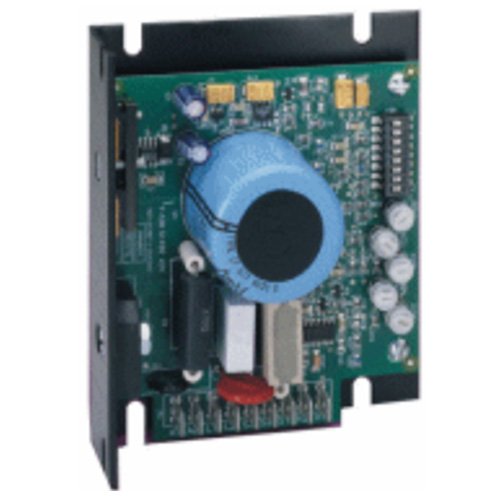

784 Control
Unit of Measure

Specifications

Supplier Name

 N/A Bodine Electric Company

Manufacturer Part Number

 N/A 784

Ambient Temperature

 N/A 32 to 122 ºF

Brake Type

 N/A Dynamic

Braking

 N/A No

Continuous Current

 N/A 3.2 A

Drive Input Phase

 N/A 1 pH

Drive Input Alternating Current (AC) Voltage

 N/A 115 V

Drive Output Direct Current (DC) Voltage

 N/A 130 V

Drive Type

 N/A Non-Regenerative

Enclosure Rating

 N/A Ingress Protection (IP)-00

Enclosure Type

 N/A Chassis

Feedback Type

 N/A None

Frequency

 N/A 50 Hz60 Hz

Function of Controller

 N/A Jog Run Stop

Maximum Motor Power

 N/A 7/16 hp

Peak Current

 N/A 5 A

Standards Met

 N/A Canadian Standards Association (CSA) Underwriter Laboratories (UL)

Weight

 N/A 1 lb

Features & Benefits

Features & Benefits

 N/A
  • Operates off 115 Volt AC line, 50/60 Hz
  • Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range
  • Back EMF feedback maintains better than 2% speed regulation
  • Dip switches to easily calibrate control for different motor sizes
  • Two diagnostic LEDs indicate when power is on and when current output is at limit set by TORQ pot
  • Five on-board user-adjustable pots for torque limit, minimum speed limit, maximum speed limit, acceleration time, and speed regulation
  • Speed can be adjusted manually using a remote 10k speed pot (included with control)
  • Connections for optional user-supplied inhibit switch
