Supplier Name |
N/A Topworx |
Brands |

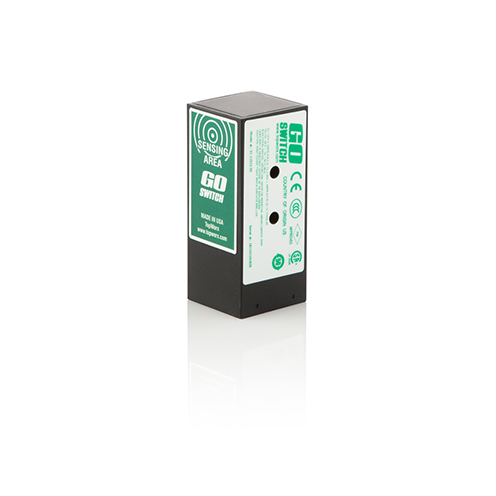

N/A Go Switch |
Manufacturer Part Number |
N/A 21-11510-00 |
Model Number |
N/A Model 21 |
Area Classification |
N/A
Canadian Standards Association (CSA)/Factory Mutual (FM) CI I, Div 2, Grps A-D CI II, Div 1&2, Grps E-G CI III |
Body Style |
N/A Square |
Circuit Requirements |
N/A Positive-Negative-Positive (PNP)/Negative-Positive-Negative (NPN)/Normally Open (NO)/Normally Closed (NC) |
Contact Form |
N/A Single Pole Double Throw (SPDT) |
Alternating Current (AC) Voltage Rating |
N/A 120 V240 V480 V |
Direct Current (DC) Voltage |
N/A 24 V48 V120 V |
Electrical Current at 120 V Alternating Current (AC) Voltage |
N/A 10 A |
Electrical Current at 240 V Alternating Current (AC) Voltage |
N/A 5 A |
Electrical Current at 480 V Alternating Current (AC) Voltage |
N/A 2.5 A |
Electrical Current at 24 V Direct Current (DC) Voltage |
N/A 3 A |
Electrical Current at 48 V Direct Current (DC) Voltage |
N/A 1 A |
Electrical Current at 120 V Direct Current (DC) Voltage |
N/A 0.5 A |
Enclosure Material |
N/A Brass |
Ferrous Sensing Range |
N/A 0.375 in9.52 mm |
Limit Switch Type |
N/A Dry Contact Proximity Sensor |
Maximum Ambient Temperature |
N/A 60 to 80 ºC |
Minimum Ambient Temperature |
N/A -50 ºC |
Outlet Position |
N/A Bottom |
Sensing Type |
N/A Extended Side Sensing |
Series |
N/A 21-Series |
Switching Actuation |
N/A Ferrous or Magnetic Target |
Switching Function |
N/A Dry Contact |
Wiring Option |
N/A
Terminal Block 1/2 in. - 14 National Pipe Thread (NPT) |
