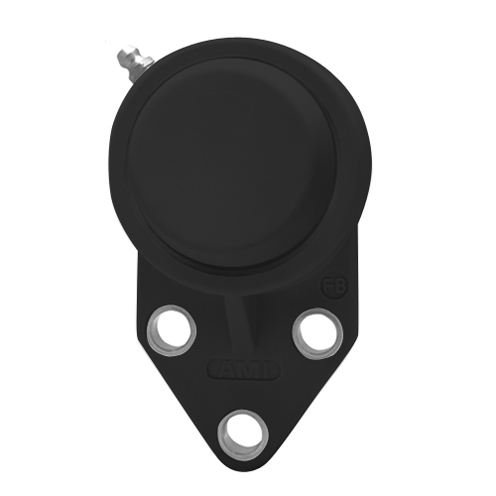

Item # 03770419, AMI 1 Inch (in) Bore Diameter Flange-Mount Ball Bearing Unit On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A AMI Bearings
Manufacturer Part Number	N/A MBFBL5-16CEB
Prop 65	N/A Yes
Bolt Size	N/A 0.3750 in
Bore Diameter	N/A 1 in
Bore Type	N/A Round
Bracket Width	N/A 2-1/2 in
Duty Type	N/A Standard Duty
End Type	N/A Closed Cover & Back Seal
Horizontal Bolt Spacing	N/A 1-5/8 in
Housing Material	N/A PBT Thermoplastic
Hub Diameter	N/A 2.7500 in
Length Through Bore	N/A 1.063 in
Locking Device	N/A Set Screw
Lubrication Type	N/A Relubricatable
Mounting Type	N/A 3-Bolt Bracket
Radial Dynamic Load Capacity	N/A 2680 lbf
Radial Static Load Capacity	N/A 1420 lbf
Replacement Bearing	N/A MB5-16
Seal Type	N/A Contact Seal
Series	N/A MBFBL200CEB
Shaft Centerline Height	N/A 1-13/16 in
Unit Standoff	N/A 2-11/64 in
Vertical Bolt Spacing	N/A 1-1/8 in
