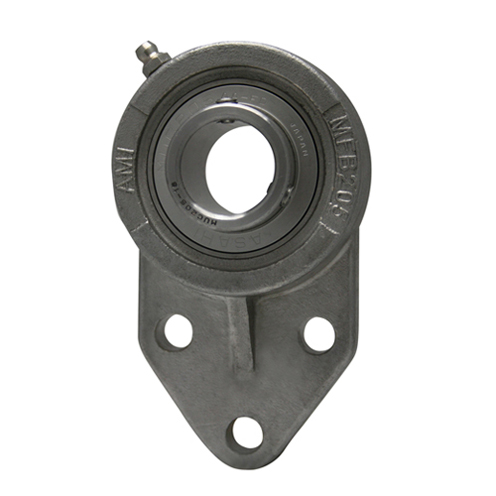

Item # 03773523, AMI 1.2500 Inch (in) Bore Diameter Flange-Mount Ball Bearing Unit On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A AMI Bearings
Manufacturer Part Number	N/A MUCFB207-20
Prop 65	N/A Yes
Bolt Size	N/A 0.5000 in
Bore Diameter	N/A 1.2500 in
Bore Type	N/A Round
Bracket Width	N/A 3-1/4 in
Duty Type	N/A Standard Duty
Horizontal Bolt Spacing	N/A 2 in
Housing Material	N/A 304 Cast Stainless Steel
Hub Diameter	N/A 3.7500 in
Length Through Bore	N/A 1.689 in
Locking Device	N/A Set Screw
Lubrication Type	N/A Relubricatable
Mounting Type	N/A 3-Bolt Bracket
Radial Dynamic Load Capacity	N/A 4950 lbf
Radial Static Load Capacity	N/A 2770 lbf
Replacement Bearing	N/A MUC207-20
Seal Type	N/A Contact with Flinger
Series	N/A MUCFB200
Shaft Centerline Height	N/A 2-3/8 in
Unit Standoff	N/A 1-53/64 in
Vertical Bolt Spacing	N/A 1-1/4 in
