Specifications

Supplier Name

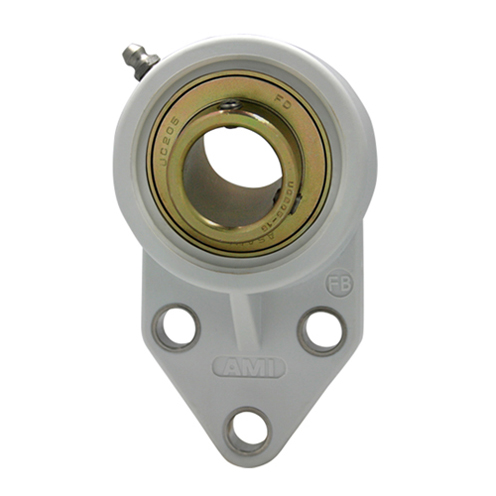

 N/A AMI Bearings

Manufacturer Part Number

 N/A UCFBL206-19MZ20W

Prop 65

 N/A Yes

Bolt Size

 N/A 0.3750 in

Bore Diameter

 N/A 1.1875 in

Bore Type

 N/A Round

Bracket Width

 N/A 3 in

Duty Type

 N/A Standard Duty

Horizontal Bolt Spacing

 N/A 1-7/8 in

Housing Material

 N/A PBT Thermoplastic

Hub Diameter

 N/A 3.2500 in

Length Through Bore

 N/A 1.500 in

Locking Device

 N/A Set Screw

Lubrication Type

 N/A Relubricatable

Mounting Type

 N/A 3-Bolt Bracket

Radial Dynamic Load Capacity

 N/A 4410 lbf

Radial Static Load Capacity

 N/A 2540 lbf

Replacement Bearing

 N/A UC206-19MZ20

Seal Type

 N/A Contact with Flinger

Series

 N/A UCFBL200MZ20W

Shaft Centerline Height

 N/A 2-1/16 in

Unit Standoff

 N/A 1-41/64 in

Vertical Bolt Spacing

 N/A 1-1/4 in
