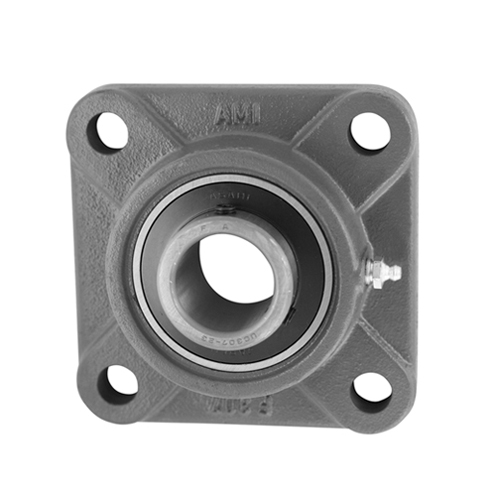

Item # 03716936, AMI 4.0000 Inch (in) Bore Diameter Flange-Mount Ball Bearing Unit On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A AMI Bearings
Manufacturer Part Number	N/A UCF320-64
Prop 65	N/A Yes
Bolt Center-to-Center Length	N/A 9.5313 in
Bore Diameter	N/A 4.0000 in
Bore Type	N/A Round
Duty Type	N/A Heavy Duty
Expansion Type	N/A Non-Expansion Bearing (Fixed)
Housing Material	N/A Cast Iron
Length Through Bore	N/A 4.252 in
Locking Device	N/A Set Screw
Lubrication Type	N/A Relubricatable
Mounting Type	N/A 4-Bolt Flange
Radial Dynamic Load Capacity	N/A 39000 lbf
Radial Static Load Capacity	N/A 31500 lbf
Replacement Bearing	N/A UC320-64
Seal Type	N/A Contact with Flinger
Series	N/A UCF300
