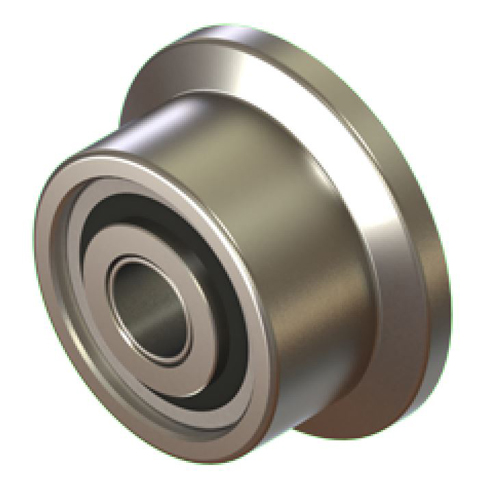

FTRY-4 Flanged Yoke Roller
Unit of Measure

Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

 N/A FTRY-4.00

Series

 N/A FTRY

Axial Dynamic Load Capacity

 N/A 5750 lbf

Axial Static Load Capacity

 N/A 13100 lbf

Bearing Element

 N/A Tapered Rollers

Bore Diameter

 N/A 1.2500 in

Closure Type

 N/A Sealed

Flange Diameter

 N/A 4.9370 in

Flange Thickness

 N/A 0.5900 in

Lubrication Type

 N/A Sealed for Life

UPC Code

 N/A 841946103918

Operating Temperature [Max]

 N/A 250 ºF

Operating Temperature Range

 N/A -30 to 225 ºF

Overall Width

 N/A 2.3130 in

Radial Dynamic Load Capacity

 N/A 17600 lbf

Radial Static Load Capacity

 N/A 27200 lbf

Roller Diameter

 N/A 4.0000 in

Roller Material

 N/A Carbon Steel

Roller Shape

 N/A Single Flanged

Roller Width

 N/A 2.2500 in

Seal Type

 N/A Rubber Dual Lip

Weight

 N/A 7.72 lb

Features & Benefits

Features & Benefits

 N/A
  • Flanged Track Rollers provide single direction guidance in applications where side loads are expected
  • Like most locational units, Flanged rollers are used in tandem with plain rollers to prevent overload from misalignment
