Specifications

Supplier Name

 N/A AMI Bearings

Manufacturer Part Number

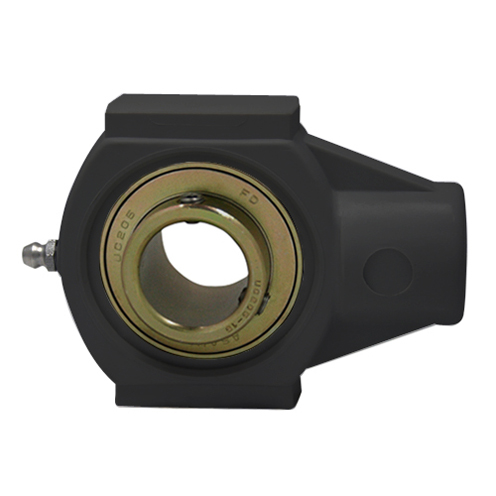

 N/A UCHPL205-16MZ2B

Prop 65

 N/A Yes

Bearing Material

 N/A AISI 52100 Steel - Zinc Protection

Bore Diameter

 N/A 1 in

Hanger Unit Type

 N/A Conveyor Hanger Units

Housing Material

 N/A PBT Thermoplastic

Locking Device

 N/A Set Screw Collar

Outside Diameter

 N/A 2.9063 in

Radial Dynamic Load Capacity

 N/A 3150 lbf

Radial Static Load Capacity

 N/A 1780 lbf

Replacement Bearing

 N/A UC205-16MZ2

Seal Type

 N/A Contact with Slinger

Series

 N/A UCHPL200MZ2B

Thread Size

 N/A 1/2-13UNC
