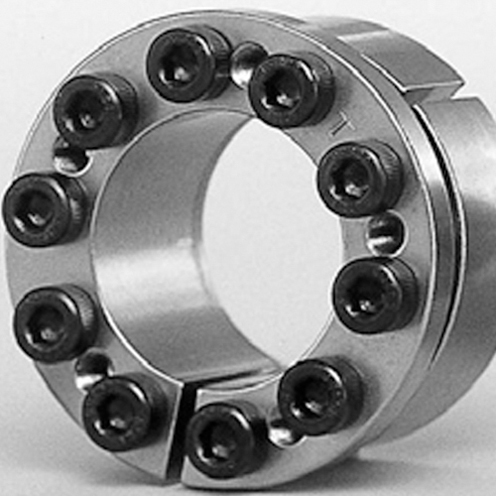

PL 1-1/4 KE Power-Lock Bushing
Unit of Measure

Specifications

Supplier Name

 N/A Tsubaki (UST)

Manufacturer Part Number

 N/A PL1-1/4 KE

Component Bore Diameter

 N/A 2.0000 in

Finish

 N/A Uncoated

Flange Type

 N/A Flanged

Hub Contact Pressure

 N/A +16970 psi

Inside Diameter

 N/A 1.2500 in

Keyless Bushing Type

 N/A Cap Screw Clamping

Length Through Bore

 N/A 1.1020 in

Maximum Transmitted Thrust

 N/A 7295 lb

Maximum Transmitted Torque

 N/A 402 ft·lb

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 2.1250 in

Overall Length

 N/A 1.2990 in

Series

 N/A KE

Shaft Contact Pressure

 N/A +27268 psi

Weight

 N/A 0.53 lb
