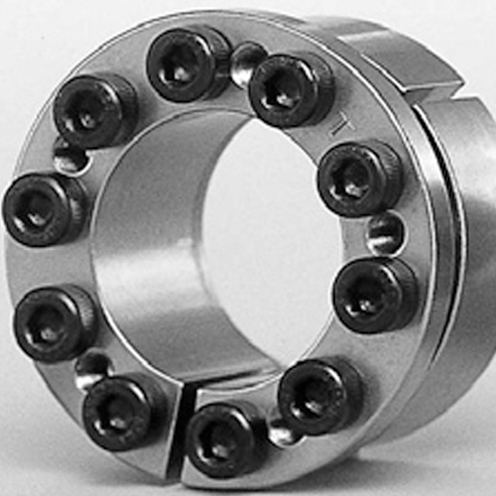

PL 2-1/2 KE Power-Lock Bushing
Unit of Measure

Specifications

Supplier Name

 N/A Tsubaki (UST)

Manufacturer Part Number

 N/A PL2-1/2 KE

Component Bore Diameter

 N/A 3.7500 in

Finish

 N/A Uncoated

Flange Type

 N/A Flanged

Hub Contact Pressure

 N/A +19145 psi

Inside Diameter

 N/A 2.5000 in

Keyless Bushing Type

 N/A Cap Screw Clamping

Length Through Bore

 N/A 1.3580 in

Maximum Transmitted Thrust

 N/A 15439 lb

Maximum Transmitted Torque

 N/A 1702 ft·lb

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 3.5630 in

Overall Length

 N/A 1.5940 in

Series

 N/A KE

Shaft Contact Pressure

 N/A +25817 psi

Weight

 N/A 1.35 lb
