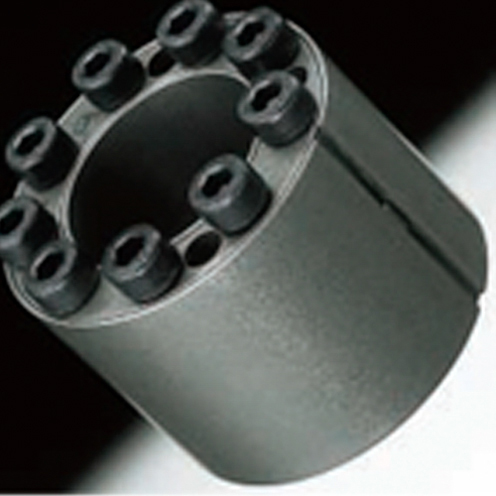

PL2AD POWER LOCK BUSHING
Unit of Measure

Specifications

Supplier Name

 N/A Tsubaki (UST)

Manufacturer Part Number

 N/A PL2 AD

Component Bore Diameter

 N/A 3.3465 in

Finish

 N/A Uncoated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +13779 psi

Inside Diameter

 N/A 2.0000 in

Keyless Bushing Type

 N/A Cap Screw Clamping

Length Through Bore

 N/A 2.2050 in

Maximum Transmitted Thrust

 N/A 38216 lb

Maximum Transmitted Torque

 N/A 3141 ft·lb

Mountable Length

 N/A 2.52 in

Mounting Type

 N/A Internal

Number of Tapers

 N/A 2

Outside Diameter

 N/A 3.3465 in

Overall Length

 N/A 2.835 in

Series

 N/A AD

Shaft Contact Pressure

 N/A +23061 psi
