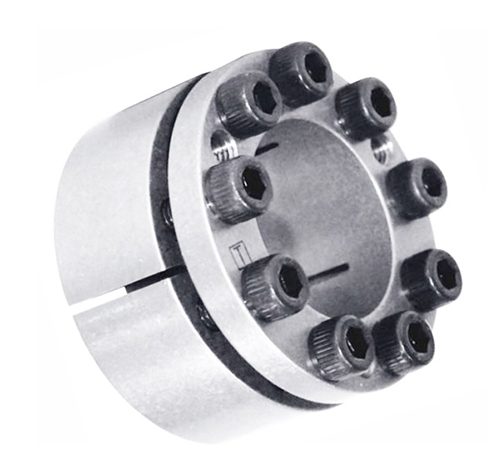

PL2KFL PL2-11/16" FL Power-Lock
Unit of Measure

Specifications

Supplier Name

 N/A Tsubaki (UST)

Manufacturer Part Number

 N/A PL2-11/16 FL

Component Bore Diameter

 N/A 4.3307 in

Finish

 N/A Uncoated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +20451 psi

Inside Diameter

 N/A 2.6875 in

Keyless Bushing Type

 N/A Cap Screw Clamping

Length Through Bore

 N/A 1.6140 in

Maximum Transmitted Thrust

 N/A 33046 lb

Maximum Transmitted Torque

 N/A 3711 ft·lb

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 4.3307 in

Overall Length

 N/A 2.0080 in

Series

 N/A FL

Shaft Contact Pressure

 N/A +39306 psi

Weight

 N/A 3.70 lb
