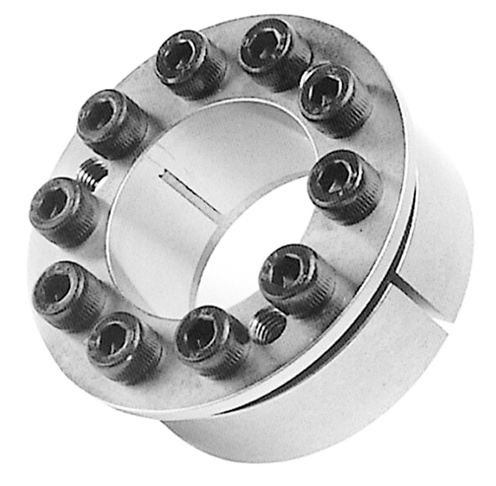

PL1PAE PL 1-7/8" AE Power-Lock
Unit of Measure

Specifications

Supplier Name

 N/A Tsubaki (UST)

Manufacturer Part Number

 N/A PL1-7/8 AE

Component Bore Diameter

 N/A 3.1496 in

Finish

 N/A Uncoated

Flange Type

 N/A Flanged

Hub Contact Pressure

 N/A +19615 psi

Inside Diameter

 N/A 1.8750 in

Keyless Bushing Type

 N/A Cap Screw Clamping

Length Through Bore

 N/A 1.3780 in

Maximum Transmitted Thrust

 N/A 19338 lb

Maximum Transmitted Torque

 N/A 1511 ft·lb

Mountable Length

 N/A 1.102 in

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 3.4650 in

Overall Length

 N/A 1.6930 in

Series

 N/A AE

Shaft Contact Pressure

 N/A +40794 psi

Weight

 N/A 1.8 lb
