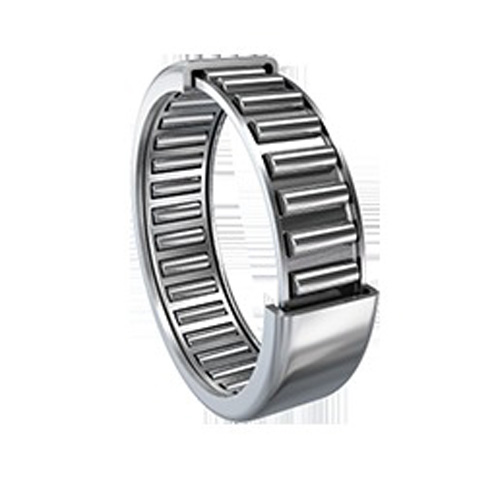

Item # 00094898, INA (Schaeffler) NCS Series 1.2500 Inch (in) Bore Diameter Needle Roller Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A NCS2016
Bore Diameter	N/A 1.2500 in
Cage Material	N/A Steel
Closure Type	N/A Open
Dynamic Load Rating	N/A 7700 lbf
Flanges	N/A With Flanges
Lubrication Hole Type	N/A Lubrication Groove and Holes
Maximum Speed	N/A 14000 rpm
Needle Bearing Type	N/A Machined Bearing with No Inner Ring
Operating Temperature [Max]	N/A 250 ºF
Outside Diameter	N/A 1.75 in
Overall Width	N/A 1.0000 in
Precision Rating	N/A Not Rated
Series	N/A NCS
Standards Met	N/A American Bearing Manufacturers Association (ABMA) 18.2 - 1982
Static Load Rating	N/A 11500 lbf
Weight	N/A 0.29 lb
