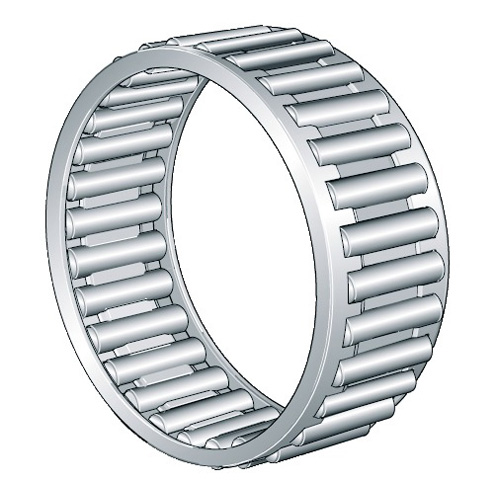

K8X12X10-TV Needle Roller Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A K8X12X10-TV

Bore Diameter

 N/A 8 mm

Cage Material

 N/A Polyamide 66

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 1120 lbf

Flanges

 N/A No Flange

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 32000 rpm

Needle Bearing Type

 N/A Roller and Cage Assembly

Number of Rows

 N/A Single-Row

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 12 mm

Overall Width

 N/A 10 mm

Precision Rating

 N/A Not Rated

Series

 N/A K

Standards Met

 N/A DIN 5405-1/International Organization for Standardization (ISO) 3030

Static Load Rating

 N/A 1060 lbf

Weight

 N/A 0.02 lb
