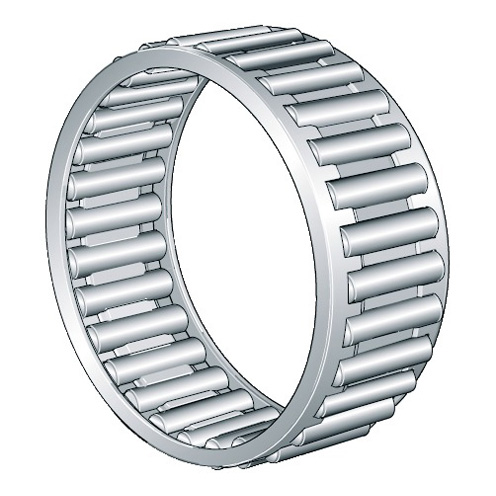

K45X50X27 Needle Roller Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A K45X50X27

Bore Diameter

 N/A 45 mm

Cage Material

 N/A Steel

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 7800 lbf

Flanges

 N/A No Flange

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 10000 rpm

Needle Bearing Type

 N/A Roller and Cage Assembly

Number of Rows

 N/A Single-Row

Outside Diameter

 N/A 50 mm

Overall Width

 N/A 27 mm

Precision Rating

 N/A Not Rated

Series

 N/A K

Standards Met

 N/A DIN 5405-1/International Organization for Standardization (ISO) 3030

Static Load Rating

 N/A 18000 lbf

Weight

 N/A 0.130 lb
