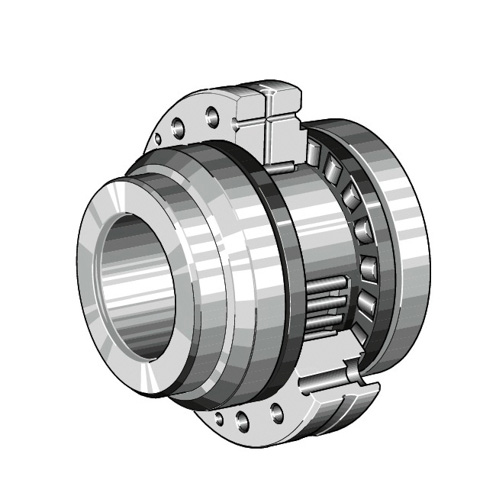

ZARN2557-L-TV Ball Screw Support Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A ZARN2557-L-TV

Bore Diameter

 N/A 25 mm

Cage Material

 N/A Polyamide 66

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 22600 lbf

Flanges

 N/A With Flanges

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 6000 rpm

Needle Bearing Type

 N/A Machined Bearing with Inner Ring

Outside Diameter

 N/A 57 mm

Overall Width

 N/A 50 mm

Precision Rating

 N/A Not Rated

Series

 N/A ZARN

Static Load Rating

 N/A 36000 lbf

Weight

 N/A 1.56 lb
