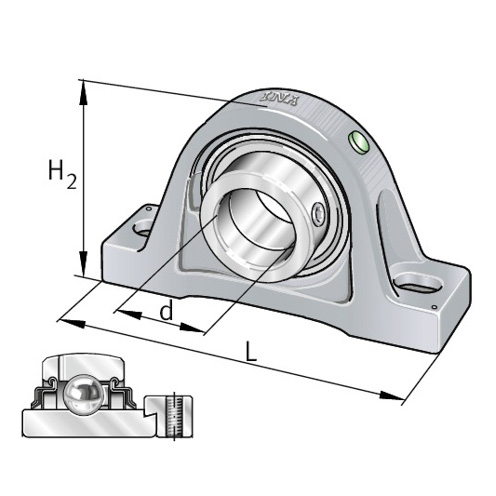

Item # 00557330, INA (Schaeffler) RASEY Series 2.039 Inch (in) Base Width Pillow Block Ball Bearing Unit On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A RASEY1-3/4
Base to Bore Centerline	N/A 2.1250 in
Base Width	N/A 2.039 in
Bolt Center-to-Center Length	N/A 5.8460 in
Bore Diameter	N/A 1.7500 in
Bore Type	N/A Round
Duty Type	N/A Standard Duty
Expansion Type	N/A Non-Expansion Bearing (Fixed)
Finish/Coating	N/A Uncoated
Housing Material	N/A Cast Iron
Locking Device	N/A Set Screw
Lubrication Type	N/A Lubrication Fitting
Mounting Type	N/A 2-Bolt Base
Overall Height	N/A 107 mm
Overall Length	N/A 195 mm
Overall Width	N/A 1-15/16 in
Radial Dynamic Load Capacity	N/A 7400 lbf
Radial Static Load Capacity	N/A 4600 lbf
Series	N/A RASEY
Standards Met	N/A American Bearing Manufacturers Association (ABMA) 14 - 1991 American Bearing Manufacturers Association (ABMA) 15 - 1991 EN-GJL-200/250 to DIN European Standards (EN) 1561 International Organization for Standardization (ISO) 3228
Weight	N/A 5.54 lb
