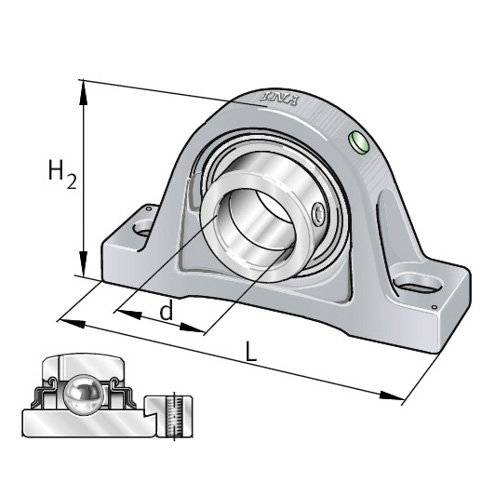

Item # 00557650, INA (Schaeffler) RASE Series 1.26 Inch (in) Base Width Pillow Block Ball Bearing Unit On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A RASE1/2
Base to Bore Centerline	N/A 1.1875 in
Base Width	N/A 1.26 in
Bolt Center-to-Center Length	N/A 3.6220 in
Bore Diameter	N/A 0.5000 in
Bore Type	N/A Round
Duty Type	N/A Standard Duty
Expansion Type	N/A Non-Expansion Bearing (Fixed)
Finish/Coating	N/A Uncoated
Housing Material	N/A Cast Iron
Locking Device	N/A Eccentric Collar
Lubrication Type	N/A Lubrication Fitting
Mounting Type	N/A 2-Bolt Base
Overall Height	N/A 58 mm
Overall Length	N/A 125 mm
Overall Width	N/A 1-15/32 in
Radial Dynamic Load Capacity	N/A 2200 lbf
Radial Static Load Capacity	N/A 1070 lbf
Series	N/A RASE
Standards Met	N/A American Bearing Manufacturers Association (ABMA) 14 - 1991 American Bearing Manufacturers Association (ABMA) 15 - 1991 EN-GJL-200/250 to DIN European Standards (EN) 1561 International Organization for Standardization (ISO) 3228
Weight	N/A 1.43 lb
