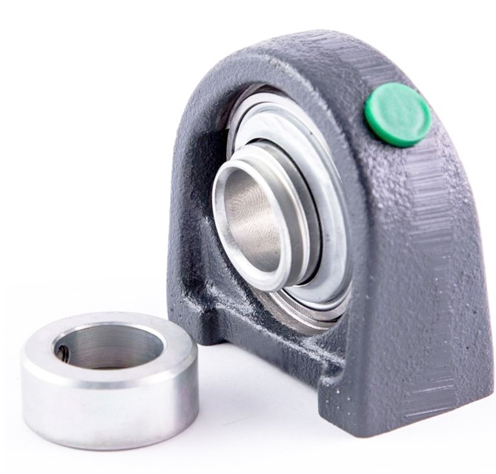

PSHE50-XL-N Pillow Block
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A PSHE50-XL-N

Base to Bore Centerline

 N/A 57.2 mm

Base Width

 N/A 54 mm

Bolt Center-to-Center Length

 N/A 101.60 mm

Bore Diameter

 N/A 50 mm

Bore Type

 N/A Round

Duty Type

 N/A Standard Duty

Expansion Type

 N/A Non-Expansion Bearing (Fixed)

Housing Material

 N/A Cast Iron

Length Through Bore

 N/A 43.8 mm

Locking Device

 N/A Eccentric Collar

Lubrication Type

 N/A Lubrication Fitting

UPC Code

 N/A 4012802836219

Mounting Type

 N/A Tapped Base

Overall Height

 N/A 115 mm

Overall Length

 N/A 135 mm

Radial Dynamic Load Capacity

 N/A 37500 N

Radial Static Load Capacity

 N/A 23200 N

Replacement Bearing

 N/A GRAE50-XL-NPPB

Seal Type

 N/A P-Seal

Series

 N/A PSHE

Weight

 N/A 7.37 lb
