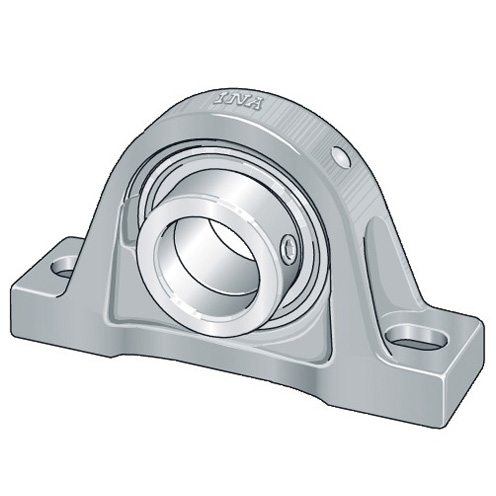

PAKY40 Pillow Block Unit
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A PAKY40

Base to Bore Centerline

 N/A 1.9370 in

Base Width

 N/A 50 mm

Bolt Center-to-Center Length

 N/A 147 mm

Bore Diameter

 N/A 40 mm

Bore Type

 N/A Round

Expansion Type

 N/A Non-Expansion Bearing (Fixed)

Finish/Coating

 N/A Uncoated

Housing Material

 N/A Cast Iron

Locking Device

 N/A Set Screw

Lubrication Type

 N/A Lubrication Fitting

Mounting Type

 N/A 2-Bolt Base

Overall Height

 N/A 100 mm

Overall Length

 N/A 181.5 mm

Overall Width

 N/A 1-9/16 in

Radial Dynamic Load Capacity

 N/A 7300 lbf

Radial Static Load Capacity

 N/A 4450 lbf

Series

 N/A PAKY

Standards Met

 N/A American Bearing Manufacturers Association (ABMA) 14 - 1991 American Bearing Manufacturers Association (ABMA) 15 - 1991 EN-GJL-200/250 to DIN European Standards (EN) 1561 International Organization for Standardization (ISO) 3228

Weight

 N/A 4.88 lb
