Supplier Name |
N/A Nexen |
Manufacturer Part Number |
N/A 830850 |
Actuation |
N/A Air/Air |
Approximate Brake Facing Life |
N/A 1225 hp·hr |
Approximate Clutch Facing Life |
N/A 1225 hp·hr |
Bore Size |
N/A 1-1/2 in |
Bore Type |
N/A Straight |
Brake Air Chamber Volume when New |
N/A 3.654 in³ |
Brake Air Chamber Volume when Worn Out |
N/A 5.786 in³ |
Brake Facing Edge Color Code |
N/A Red |
Brake Facing Type |
N/A Standard Coefficient |
Clutch Air Chamber Volume when New |
N/A 3.654 in³ |
Clutch Air Chamber Volume when Worn Out |
N/A 5.786 in³ |
Clutch Facing Edge Color Code |
N/A Red |
Clutch Facing Type |
N/A Standard Coefficient |

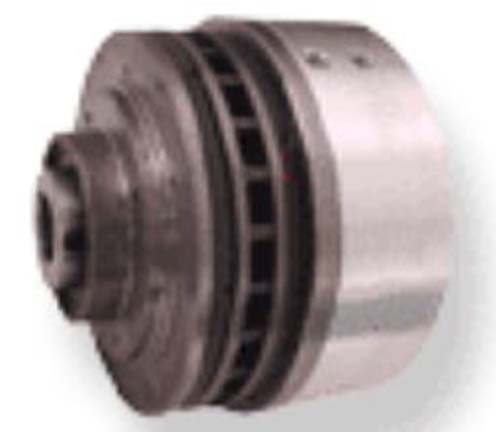

Combination Type |
N/A Shaft Mounted Clutch-Brake |
Coupling Brand |
N/A Dodge |
Coupling Type |
N/A Taper Lock Poly Disc |
Coupling Size |
N/A 7.000 in |
Drive Arrangement |
N/A Pilot Mount |
Drive Inertia |
N/A 56.40 lb·in² |
Finish |
N/A Black Oxide |
Length |
N/A 6.72 in |
UPC Code |
N/A 662284252683 |
Maximum Speed |
N/A 1800 rpm |
Maximum Brake Continuous Thermal Dissipation |
N/A 0.60 hp |
Maximum Clutch Continuous Thermal Dissipation |
N/A 0.60 hp |
Maximum Pressure |
N/A 80 psi |
Maximum Static Brake Torque |
N/A 1100 in·lb |
Maximum Static Clutch Torque |
N/A 1100 in·lb |
Minimum Sprocket Size |
N/A 40/38T 50/31T, |
Open or Enclosed Design |
N/A Open |
Outside Diameter |
N/A 8.12 in |
Pilot or Drive Flange Bolt Circle Data |
N/A 4, 0.250-20 Holes at 90º on A 3.500 in Circle |
Pilot Size |
N/A 4.000 in |
Port Size |
N/A 1/8 in |
Port Type |
N/A National Pipe Thread (NPT) |
Rating |
N/A European Conformity (CE) Restriction of Hazardous Substances (RoHS) |
Series |
N/A MCB |
Temperature Range |
N/A 32 to 150 ºF |
Weight |
N/A 39.00 lb |
Restrictions |
N/A Must be Mounted on The Driven Shaft |
