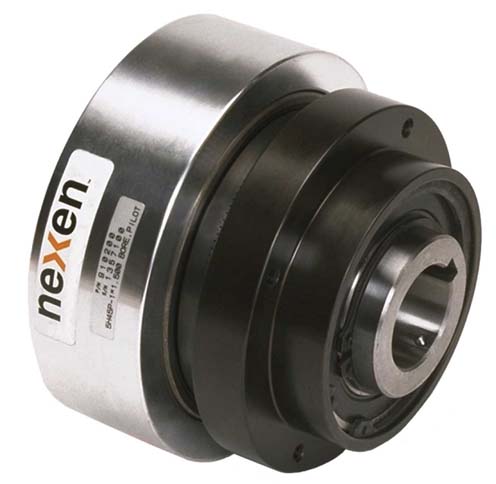

Supplier Name |
N/A Nexen |
Manufacturer Part Number |
N/A 910002 |
Model Number |
N/A 5H35P |
Air Chamber Volume |
N/A 8.062 cm³ |
Backlash |
N/A 0.35 º |
Bore Size |
N/A 25 mm |
Bore Type |
N/A Finished with No Keyway |
Clutch Response Factor |
N/A 0.763 |
Clutch Type |
N/A Tooth Clutch |
Design |
N/A Open |
Drive Arrangement |
N/A Pilot Mount |
Drive Inertia |
N/A 32.99 kg·cm² |
Engagement |
N/A Air Engaged |
Release |
N/A Spring Release |
Finish |
N/A Black Oxide Pilot |
Air Chamber Finish |
N/A Machined Aluminum |
Function |
N/A Connect/Disconnect, Shaft Timing, Holding |
Harmonization Code |
N/A 8483.60.4000 |
Maximum Speed |
N/A 3200 rpm |
Maximum Pressure |
N/A 6.0 bar |
Minimum Engagement Pressure |
N/A 1.4 bar |
Minimum Sprocket Size |
N/A 35/40T 40/32T 50/26T 60/22T 80/17T |
Minimum Static Torque Capacity |
N/A 68 N·m |
Mounting Configuration |
N/A Shaft Mounted |
Number of Engagement Positions |
N/A 106 |
Port Size |
N/A 1/4 in |
Port Type |
N/A British Standard Pipe Taper (BSPT) |
Rating |
N/A European Conformity (CE) Restriction of Hazardous Substances (RoHS) |
Shaft Inertia |
N/A 8.42 kg/cm² |
Weight |
N/A 11 lb |
Torque Capacity at 80 Pound per Square Inch (psi) |
N/A Up to 14650 lb·in |
