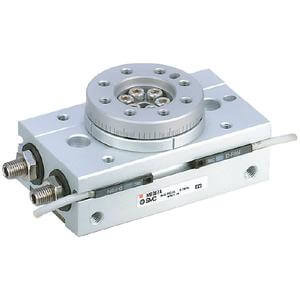

MSQA1A
Unit of Measure

Specifications

Supplier Name

 N/A SMC®

Manufacturer Part Number

 N/A MSQA1A

Actuator Type

 N/A Rack-and-Pinion

Angle of Rotation

 N/A 190 º

Body Size

 N/A 1 mm

Bore Diameter

 N/A 6 mm

Cushion Type

 N/A None

Options Included

 N/A Magnetized

Maximum Rotation Speed Per 90 Degree

 N/A 0.7 s

Minimum Rotation Speed Per 90 Degree

 N/A 0.2 s

Mounting Type

 N/A Basic

Operating Pressure Range

 N/A 0.1 to 0.7 MPa

Operating Temperature Range

 N/A 0 to 60 ºC

Overall Height

 N/A 29.5 mm

Overall Length

 N/A 59.9 mm

Overall Width

 N/A 28 mm

Port 1 Type

 N/A Female

Port 1 Size

 N/A M3 x 0.5

Port Gender

 N/A Female

Rotation Speed Range Per 90 Degree

 N/A 0.2 to 0.7 s

Standards Met

 N/A Japanese Industrial Standards (JIS)

Series

 N/A MSQ

Package Type

 N/A Each
