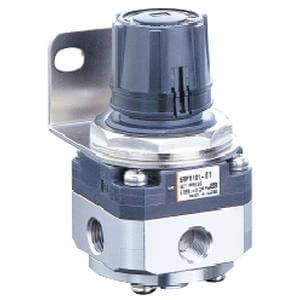

SRP1101-N01
Unit of Measure

Specifications

Supplier Name

 N/A SMC®

Manufacturer Part Number

 N/A SRP1101-N01

Fluid Compatibility

 N/A Air

Maximum Operating Pressure

 N/A 145 psi

Operating Temperature Range

 N/A 0 to 60 ºC

Overall Height

 N/A 75.5 mm

Overall Length

 N/A 40 mm

Overall Width

 N/A 40 mm

Port Gender

 N/A Female

Proof Pressure

 N/A 217 psi

Set Pressure Range

 N/A 0.73 to 29 psi

Standards Met

 N/A Japanese Industrial Standards (JIS)

Thread Standard

 N/A National Pipe Thread (NPT)

Weight

 N/A 0.88 lb

Package Type

 N/A Each
