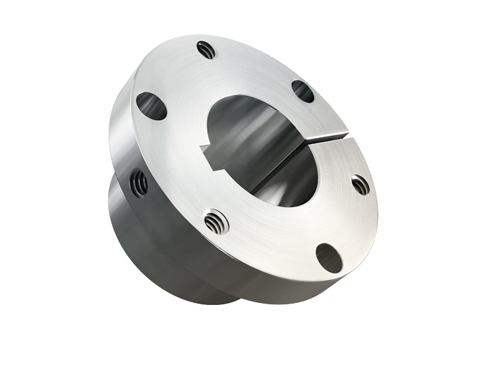

QDBF-1.5000-SS Quick-Detach Bushing -(F) Style 1.5000" Bore - Stainless Steel
Unit of Measure

Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

 N/A QDBF-1.5000-SS

Bolt Circle Diameter

 N/A 5.6250 in

Bore Diameter

 N/A 1.5000 in

Bore Type

 N/A Finished with Keyway

Bushing Size

 N/A F

Flange Outside Diameter

 N/A 6.6250 in

Flange Thickness

 N/A 1.0000 in

Length Through Bore

 N/A 3.7500 in

UPC Code

 N/A 841946115287

Material

 N/A 300 Series Stainless Steel

Maximum Bore Diameter

 N/A 4.0000 in

Mounting Type

 N/A Conventional

Number of Bolt Holes

 N/A 3

Screw Thread Size

 N/A 9/16 in

Screw Torque

 N/A 56.67 ft·lb

Weight

 N/A 21.091 lb
