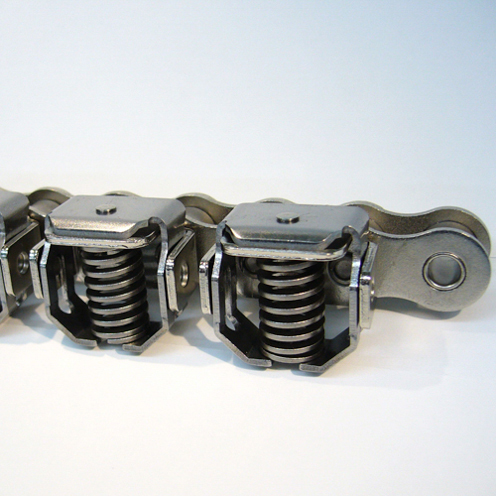

RS10BNPKUTM Gripper Chain
Unit of Measure

Specifications

Supplier Name

 N/A Tsubaki (UST)

Manufacturer Part Number

 N/A RS10B NP KUTM

Chain Number

 N/A 10B

Chain Pitch Size

 N/A 5/8 in

Chain Standard

 N/A American National Standards Institute (ANSI)

Clamping Force

 N/A 70 N

Finish

 N/A Nickel Plated

Inside Width

 N/A 9.65 mm

Material

 N/A Carbon Steel

Material Specification

 N/A Alloy Steel Type 304

Measurement Standard

 N/A Metric

Number of Strands Across

 N/A 1

Pitch Size

 N/A 15.9 mm

Roller Diameter

 N/A 10.16 mm

Series

 N/A British Standard
