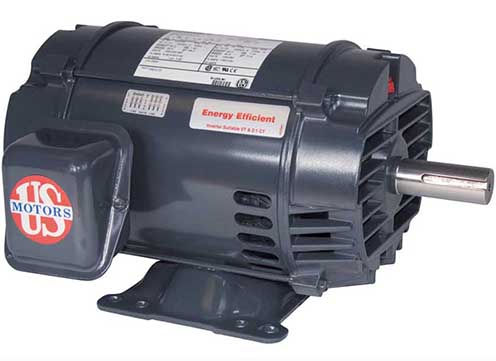

1-1/2 hp, 3525 and 2900 rpm, D32P1D, 208-230
Unit of Measure

Specifications

Supplier Name

 N/A US Motors (Nidec)

Manufacturer Part Number

 N/A D32P1D

Ambient Temperature

 N/A 40 ºC

Base Speed

 N/A 2900 rpm3525 rpm

Duty/Condition Type

 N/A Continuous Duty

Enclosure Type

 N/A Open Drip-Proof (ODP)

Frame Material

 N/A Steel

Frame Size

 N/A 143T

Frequency

 N/A 50 Hz60 Hz

Harmonization Code

 N/A 8501.52.4000

Power for 2 Poles

 N/A 1-1/2 hp

Phase

 N/A 3

Number of Poles

 N/A 2

Supply Voltage

 N/A 190 V208 to 230 V380 V460 V

Mounting Type

 N/A Footed Horizontal

National Electrical Manufacturers Association (NEMA) Design Class

 N/A B

Synchronous Speed

 N/A 3600 rpm

Weight

 N/A 35.00 lb

Applications

Applications

 N/A For use in pumps, fans, compressors, material handling and other general-purpose applications where contaminants are minimal.

Features & Benefits

Features & Benefits

 N/A
  • World Motor features except where noted
  • Class F insulation, Class B rise at service factor
  • Rolled steel frame 56 - 320, cast iron frame 360 - 440
  • Aluminum end shields 56 - 250, cast iron end shields 280440
  • "CE" mark on nameplate (140 frame and larger)
  • 40 ºC ambient, NEMA Design B Performance on 60 Hz sine wave power
  • 1.15 service factor
  • Regreasable bearings 180 frame and up
  • Double shielded bearings 140 - 400, open on 440
  • Bearing caps on 400 and 440 frames
  • F1 assembly position except where noted
  • Lifting provisions 210 frame and up
