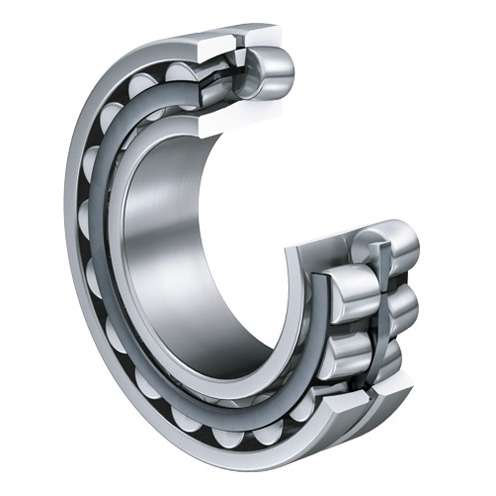

24160BK30 Double-Row Spherical Roller
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 24160BK30

Bearing Material

 N/A Steel

Bore Diameter

 N/A 300 mm

Bore Type

 N/A Tapered 1:30

Cage Material

 N/A Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 3950000 N

Fillet Radius

 N/A 4 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A Lubrication Groove and Holes

Maximum Speed

 N/A 780 rpm

Number of Rows

 N/A Double-Row

Operating Temperature Range

 N/A -30 to 200 ºC

Outer Ring Type

 N/A Not Split

Outer Ring Width

 N/A 200 mm

Outside Diameter

 N/A 500 mm

Overall Width

 N/A 200 mm

Precision Rating

 N/A Not Rated

Series

 N/A 241

Static Load Rating

 N/A 6400000 N

Weight

 N/A 347.60 lb
