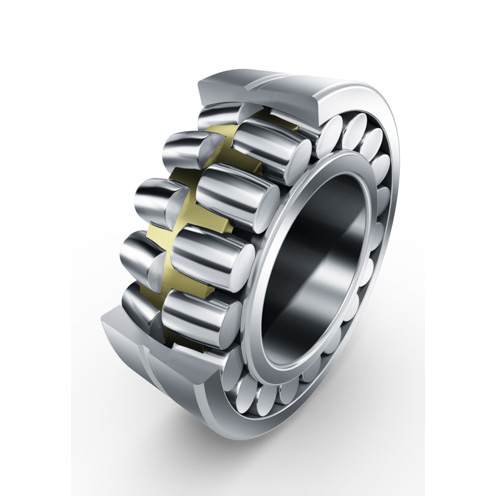

231SM220-MA Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 231SM220-MA

Bore Diameter

 N/A 220 mm

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Cage Type

 N/A Outer Ring Guided

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 1630 kN

Fillet Radius

 N/A 4 mm

Finish/Coating

 N/A Uncoated

Inner Ring Width

 N/A 190 mm

Internal Clearance

 N/A C0

Lubrication Hole Type

 N/A No Holes

Maximum Speed

 N/A 480 rpm

Operating Temperature Range

 N/A -30 to 200 ºC

Outer Ring Type

 N/A Split

Outer Ring Width

 N/A 128 mm

Outside Diameter

 N/A 400 mm

Overall Width

 N/A 190 mm

Precision Rating

 N/A Not Rated

Series

 N/A 231SM

Static Load Rating

 N/A 2600 kN
