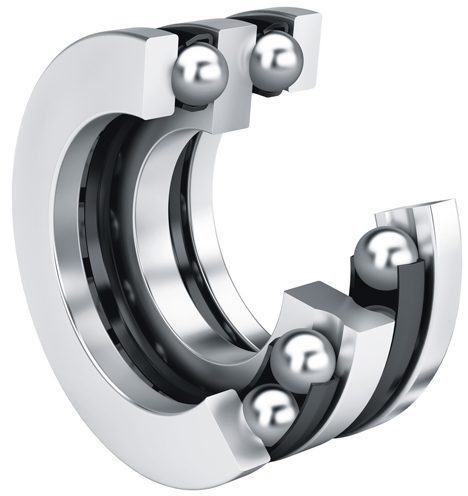

52212 Double-Direction Thrust Ball
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 52212

Bearing Material

 N/A 52100 Steel

Bore Diameter

 N/A 50 mm

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 62000 N

Fillet Radius

 N/A 0.6 mm

UPC Code

 N/A 4012801322256

Outside Diameter

 N/A 95 mm

Overall Width

 N/A 46 mm

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Static Load Rating

 N/A 139000 N

Thrust Bearing Type

 N/A Double-Direction
