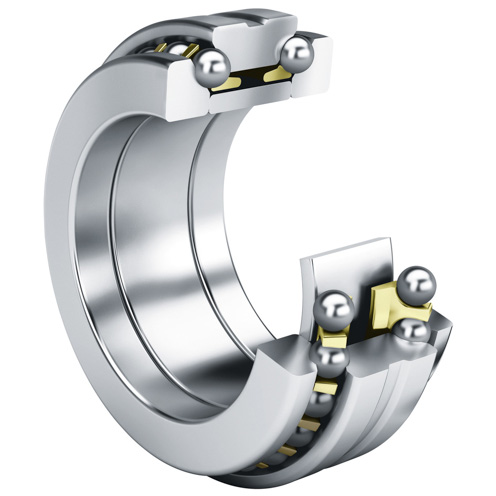

Item # 07451986, FAG (Schaeffler) 2344 Series 120 Millimeter (mm) Bore Diameter Ball Thrust Bearing On Motion Industries, Inc.

Unit of Measure

Specifications | Applications

Supplier Name	N/A FAG (Schaeffler)
Manufacturer Part Number	N/A 234424M.SP
Bore Diameter	N/A 120 mm
Cage Material	N/A Brass
Dynamic Load Rating	N/A 93 kN
Fillet Radius	N/A 2 mm
Maximum Speed	N/A 4300 rpm
Outside Diameter	N/A 180 mm
Overall Width	N/A 72 mm
Precision Rating	N/A Annular Bearings Engineers Committee (ABEC) 7 (International Organization for Standardization (ISO) Class 4)
Series	N/A 2344
Static Load Rating	N/A 240 kN
Thrust Bearing Type	N/A Double-Direction

N/A Spindles
