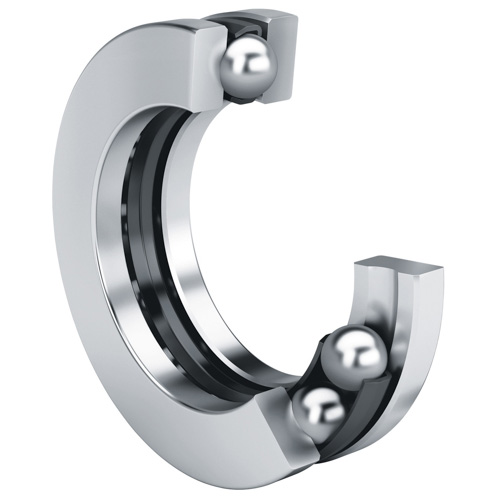

928 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 928

Bearing Material

 N/A Steel

Bore Diameter

 N/A 140 mm

Dynamic Load Rating

 N/A 53000 lbf

Maximum Speed

 N/A 1200 rpm

Outside Diameter

 N/A 200 mm

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 52 mm

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Series

 N/A 900

Static Load Rating

 N/A 155000 lbf

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 13.96 lb
