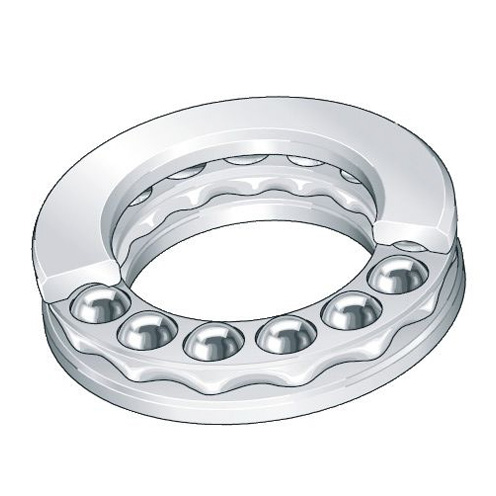

EW1 Thrust Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A EW1

Bearing Material

 N/A Steel

Bore Diameter

 N/A 1.0000 in

Dynamic Load Rating

 N/A 3350 N

Maximum Speed

 N/A 6000 rpm

Outside Diameter

 N/A 1.6250 in

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 0.3750 in

Precision Rating

 N/A Not Rated

Race

 N/A Flat

Separable or Banded

 N/A Separable

Series

 N/A EW

Static Load Rating

 N/A 2010 N

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 0.11 lb
