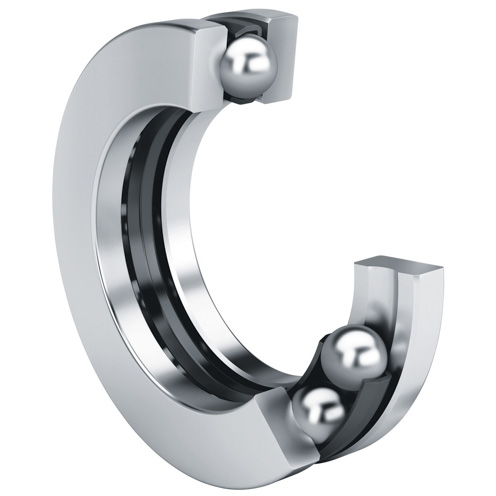

4450 Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 4450

Bearing Material

 N/A Steel

Bore Diameter

 N/A 4.5000 in

Dynamic Load Rating

 N/A 74000 N

Maximum Speed

 N/A 2000 rpm

Outside Diameter

 N/A 6.7500 in

Outside Diameter Design

 N/A Straight

Overall Width

 N/A 1.6250 in

Precision Rating

 N/A Not Rated

Race

 N/A Grooved

Separable or Banded

 N/A Separable

Series

 N/A 4400

Static Load Rating

 N/A 197000 N

Thrust Bearing Type

 N/A Single-Direction

Weight

 N/A 8.47 lb
