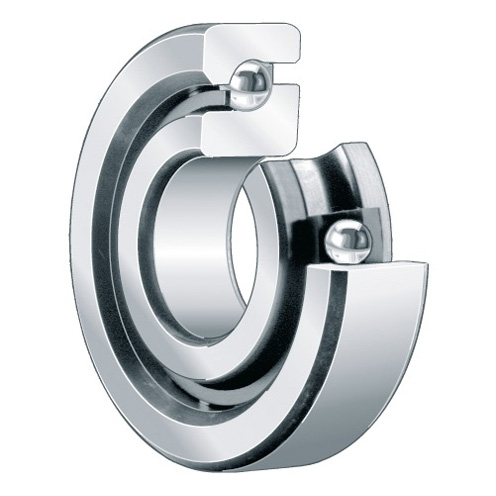

Item # 02356354, FAG (Schaeffler) BSB Series 40 Millimeter (mm) Bore Diameter Angular Contact Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A FAG (Schaeffler)
Manufacturer Part Number	N/A BSB040090-T
Bore Diameter	N/A 40 mm
Closure Type	N/A Open
Contact Angle	N/A 60 º
Fillet Radius	N/A 1.5 mm
Finish/Coating	N/A Uncoated
Internal Clearance	N/A C0
Maximum Speed	N/A 3100 rpm
Number of Rows	N/A Single-Row
Outer Ring Width	N/A 20 mm
Outside Diameter	N/A 90 mm
Overall Width	N/A 20 mm
Precision Rating	N/A Not Rated
Radial Dynamic Load Capacity	N/A 52000 N
Radial Static Load Capacity	N/A 138000 N
Fill Slot	N/A Non-Fill Slot
Series	N/A BSB
