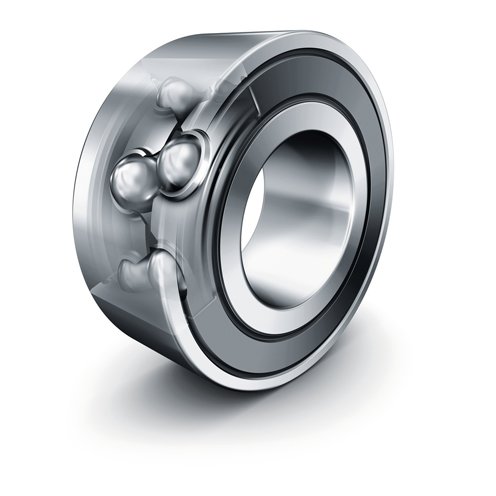

3804-B-2RSR-TVH Radial Ball
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 3804-B-2RSR-TVH

Bearing Material

 N/A 52100 Steel

Bore Diameter

 N/A 20 mm

Bore Type

 N/A Round

Cage Material

 N/A Polyamide

Closure Type

 N/A Two Contact Seals

Contact Angle

 N/A 25 º

Fillet Radius

 N/A 0.3 mm

Maximum Speed

 N/A 10700 rpm

Number of Rows

 N/A Single-Row

Outside Diameter

 N/A 32 mm

Overall Width

 N/A 10 mm

Radial Dynamic Load Capacity

 N/A 5600 N

Radial Static Load Capacity

 N/A 4750 N

Fill Slot

 N/A Non-Fill Slot

Series

 N/A 38
