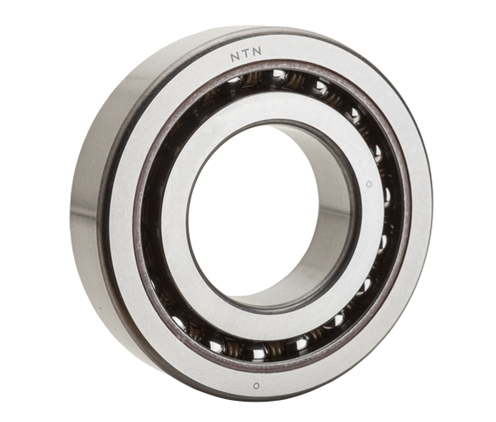

Item # 03475868, NTN BST Series 40 Millimeter (mm) Bore Diameter Angular Contact Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A NTN Bearing Company
Manufacturer Part Number	N/A BST40X90-1BP4
Series	N/A BST
Bearing Material	N/A High Carbon Chrome Steel
Bore Diameter	N/A 40 mm
Bore Type	N/A Round
Cage Material	N/A Nylon
Closure Type	N/A Open
Contact Angle	N/A 60 º
Fillet Radius	N/A 1 mm
Finish/Coating	N/A Uncoated
Internal Clearance	N/A C0
Operating Temperature Range	N/A -40 to 120 ºC
Outside Diameter	N/A 90 mm
Overall Width	N/A 15 mm
Precision Rating	N/A International Organization for Standardization (ISO) Class 4
Radial Dynamic Load Capacity	N/A 58500 N
Radial Static Load Capacity	N/A 130000 N
Number of Rows	N/A Single-Row
Fill Slot	N/A Non-Fill Slot
Snap Ring Included	N/A Without Snap Ring
Weight	N/A 1.39 lb
