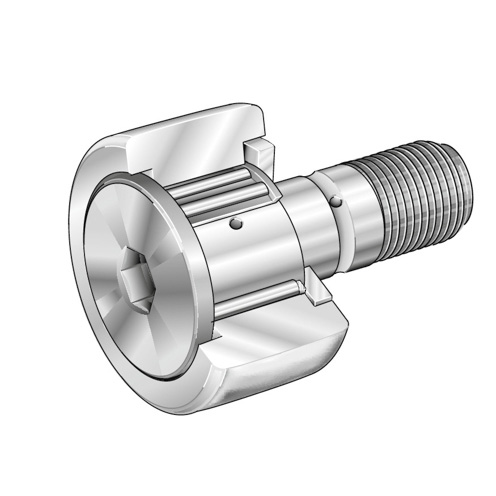

KRV35-PP Stud Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A KRV35-PP

Bearing Element

 N/A Needle Rollers

Closure Type

 N/A Sealed

Finish/Coating

 N/A Uncoated

Head Type

 N/A Hex Head

Lubrication Hole Location

 N/A Head Stud End Stud Side

Maximum Speed

 N/A 3400 rpm

Radial Dynamic Load Capacity

 N/A 2900 lbf

Radial Static Load Capacity

 N/A 5200 lbf

Roller Diameter

 N/A 35 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 18 mm

Stud Diameter

 N/A 16 mm

Stud Length

 N/A 32.50 mm

Weight

 N/A 0.53 lb
