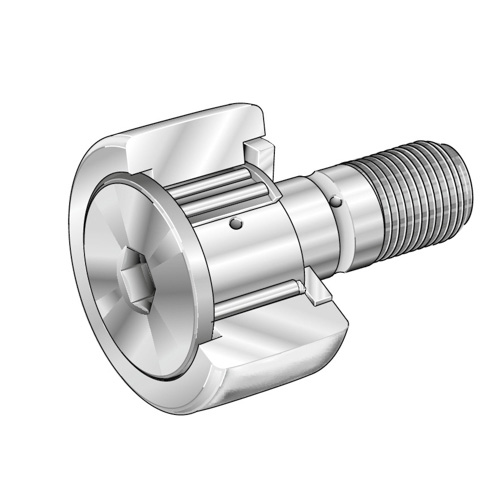

KRV80-PP Stud Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A KRV80-PP

Bearing Element

 N/A Needle Rollers

Closure Type

 N/A Sealed

Finish/Coating

 N/A Uncoated

Head Type

 N/A Hex Head

Lubrication Hole Location

 N/A Head Stud End Stud Side

Maximum Speed

 N/A 1700 rpm

Radial Dynamic Load Capacity

 N/A 11100 lbf

Radial Static Load Capacity

 N/A 27000 lbf

Roller Diameter

 N/A 80 mm

Roller Material

 N/A Chrome Steel

Roller Shape

 N/A Crowned

Roller Width

 N/A 35 mm

Stud Diameter

 N/A 30 mm

Stud Length

 N/A 63 mm

Weight

 N/A 4.96 lb
