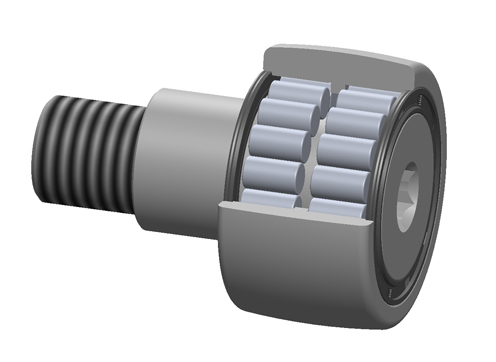

CDCE-3.00 Crowned DCB Roller
Unit of Measure

Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

 N/A CDCE-3.00

Series

 N/A CDCE

Bearing Element

 N/A Cylindrical Rollers - Two Rows

Closure Type

 N/A Sealed

Eccentricity

 N/A 0.060 in

Head Type

 N/A Hex Head

Lubrication Type

 N/A Sealed for Life

UPC Code

 N/A 00841946100177

Operating Temperature [Max]

 N/A 250 ºF

Overall Width

 N/A 1.7800 in

Radial Dynamic Load Capacity

 N/A 27600 lbf

Radial Static Load Capacity

 N/A 38000 lbf

Roller Diameter

 N/A 3.0000 in

Roller Material

 N/A Carbon Steel

Roller Shape

 N/A Crowned

Roller Width

 N/A 1.7500 in

Seal Type

 N/A Rubber Lip

Stud Diameter

 N/A 1.2500 in

Stud Length

 N/A 2.5000 in

Stud Material

 N/A Carbon Steel

Stud Type

 N/A Eccentric

Thread Length

 N/A 1-1/4 in

Thread Size

 N/A 1-1/4-12

Weight

 N/A 4.28 lb

Features & Benefits

Features & Benefits

 N/A Crowned DCB Rollers have a spherical body profile and are used to reduce the effects of misalignment by better distributing load over the body and internal bearing elements. Crowned rollers are also used in rotary applications to minimize scrubbing or skidding.
