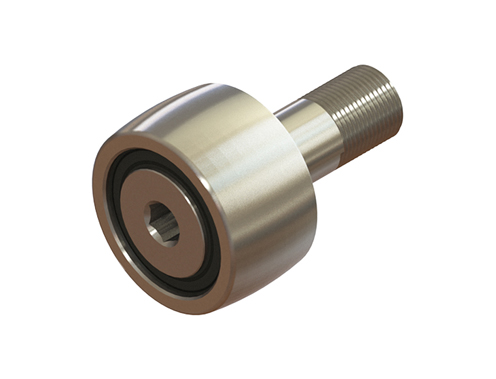

Item # 09395775, PCI Procal Inc. CXR-HT Series 2.7500 Inch (in) Roller Diameter Crowned Cam Follower On Motion Industries, Inc.

Unit of Measure

Specifications | Features & Benefits

Supplier Name	N/A PCI Procal Inc.
Manufacturer Part Number	N/A CXR-2.75-HT
Series	N/A CXR-HT
Axial Dynamic Load Capacity	N/A 1936 lbf
Axial Static Load Capacity	N/A 849 lbf
Bearing Element	N/A Balls - Two Rows
UPC Code	N/A 841946136770
Radial Dynamic Load Capacity	N/A 3828 lbf
Radial Static Load Capacity	N/A 3398 lbf
Roller Diameter	N/A 2.7500 in
Roller Material	N/A Carbon Steel
Roller Shape	N/A Crowned
Roller Width	N/A 1.5000 in
Seal Type	N/A Fluorocarbon Lip
Stud Diameter	N/A 1.0000 in
Stud Length	N/A 2.2500 in
Stud Material	N/A Carbon Steel
Thread Length	N/A 1.1250 in
Thread Size	N/A 1-14
Weight	N/A 2.60 lb

N/A

Crowned XR Rollers have a spherical body profile and are used to reduce the effects of misalignment by better distributing load over the body and internal bearing elements
Crowned rollers are also used in rotary applications to minimize scrubbing or skidding
