Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

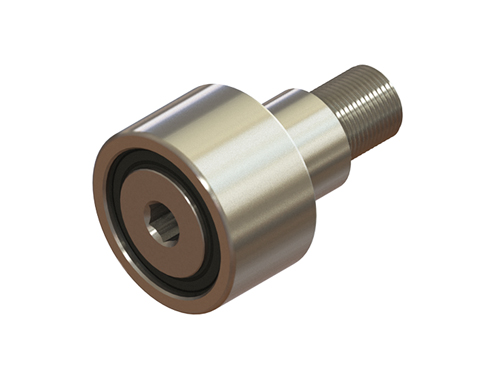

 N/A PXRE-2.75

Series

 N/A PXRE

Axial Dynamic Load Capacity

 N/A 2407 lbf

Axial Static Load Capacity

 N/A 877 lbf

Bearing Element

 N/A Balls - Two Rows

Closure Type

 N/A Sealed

Eccentricity

 N/A 0.03 in

Lubrication Type

 N/A Sealed for Life

UPC Code

 N/A 00841946106650

Operating Temperature [Max]

 N/A 250 ºF

Overall Width

 N/A 1.5300 in

Radial Dynamic Load Capacity

 N/A 5390 lbf

Radial Static Load Capacity

 N/A 3507 lbf

Roller Diameter

 N/A 2.7500 in

Roller Material

 N/A Carbon Steel

Roller Shape

 N/A Cylindrical

Roller Width

 N/A 1.5000 in

Seal Type

 N/A Rubber Lip

Stud Diameter

 N/A 1.0000 in

Stud Length

 N/A 2.2500 in

Stud Material

 N/A Carbon Steel

Stud Type

 N/A Eccentric

Thread Length

 N/A 1.1300 in

Thread Size

 N/A 1-14

Prop 65

 N/A Yes

Weight

 N/A 2.89 lb

Features & Benefits

Features & Benefits

 N/A Plain/Cylindrical XR Rollers effectively carry radial loads. For heavy side loads, Plain XR Rollers can be positioned vertically to act as side guides.
